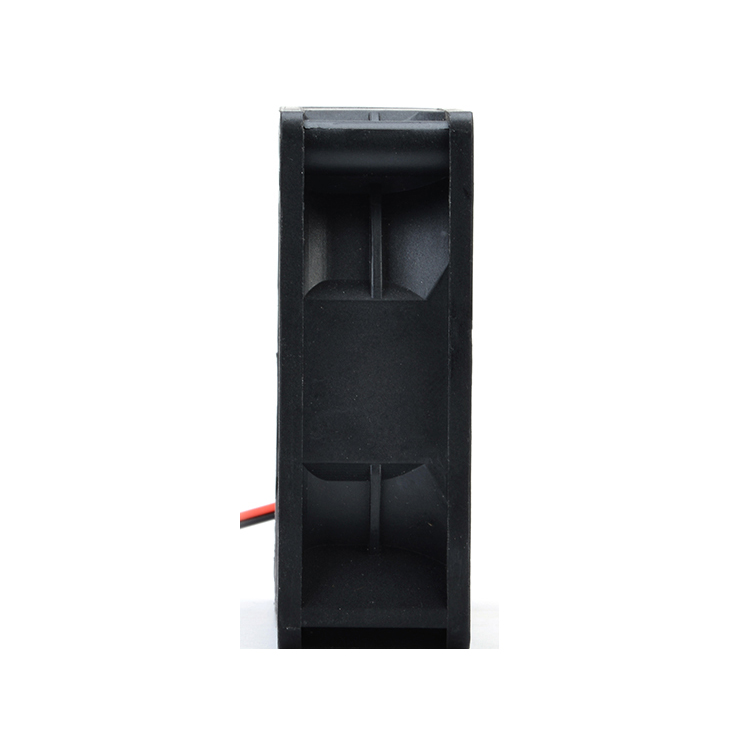

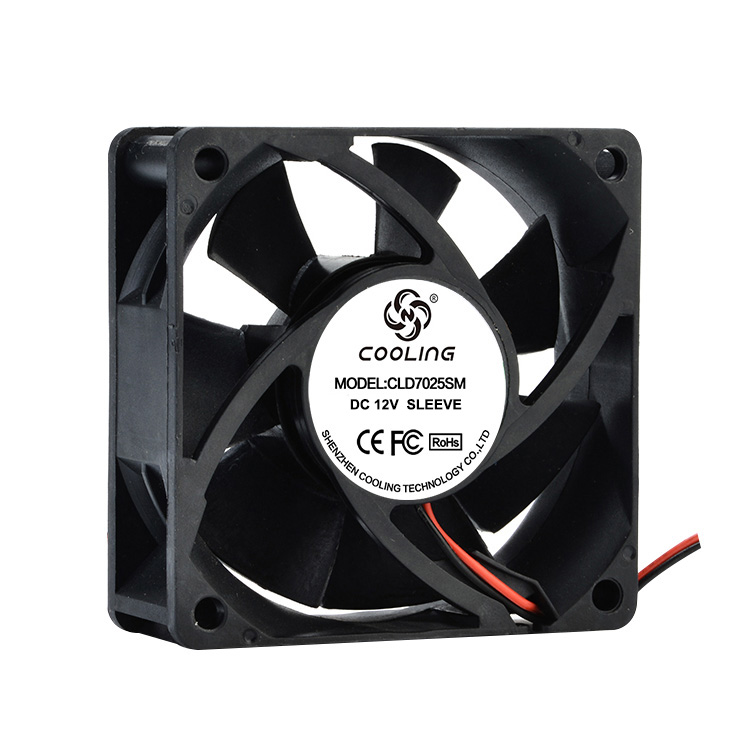

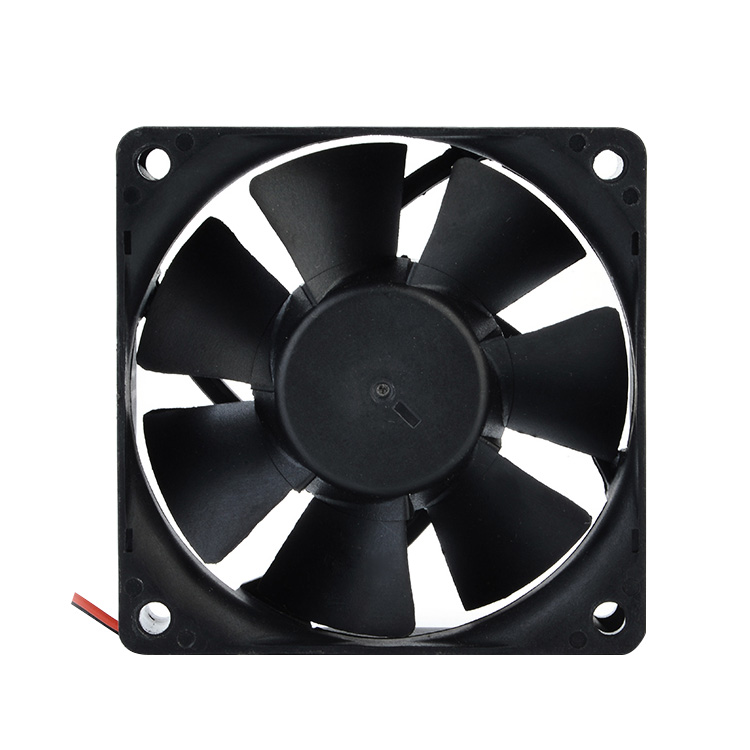

7025 12V 24V 48VDC (70X70X25mm) Cooling Fan

  • Product description: 7025 - 70X70X25mm 12V 24V 48VDC Fan with Sleeve/Hydraulic/Dual Ball Bearing 1.274m³/min 44.9CFM - DC Brushless fan & quiet cooling solutions from Cooling Technology.
  • INQUIRY

70x70x25mm 12V 24V 48VDC Cooling Fan


Product Attributes

Size / Dimension: 70x70x25mm

Voltage - Rated12VDC / 24VDC / 48VDC

Bearing Type: Sleeve / Hydraulic / Dual Ball

Air Flow: 0.760 ~ 1.274 m³/min(26.8 ~ 44.9 CFM

Static Pressure: 2.93 ~ 7.80 mm H2O(0.115 ~ 0.307 in H2O

Noise: 32.5 – 47.3 dB(A)

RPM: 3000 ~ 5000 RPM

Current Rating (Amps): 0.045 ~ 0.32A

Voltage Range: 7 ~ 13.5VDC / 18 ~ 26.5VDC / 36 ~ 54VDC

Material - Frame: Plastic (Flammability: UL94V-0)

Material - Blade: Plastic (Flammability: UL94V-0)

Power (Watts)1.68 ~ 3.84 W

Weight: 68g



Certifications:

CE Listed

FCC Listed

REACH Compliant

Model Rated Voltage Operating Voltage Range Rated Current
Rated
Input Power
Speed Maximum Air Flow Maximum Air Pressure Noise
PART.NO. VDC VDC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A
CLD7025L12X 12 7~13.5 0.14 1.68 3000 0.760 26.8 2.93 0.115 32.5
CLD7025M12X 12 7~13.5 0.176 2.16 3500 0.886 31.2 3.84 0.151 36.0
CLD7025H12X 12 7~13.5 0.22 2.64 4000 1.022 36.0 5.09 0.200 40.9
CLD7025HH12X 12 7~13.5 0.26 3.12 4500 1.147 40.5 6.29 0.248 43.0
CLD7025VH12X 12 7~13.5 0.32 3.84 5000 1.274 44.9 7.80 0.307 47.3
CLD7025L24X 24 18~26.5 0.07 1.68 3000 0.760 26.8 2.93 0.115 32.5
CLD7025M24X 24 18~26.5 0.09 2.16 3500 0.886 31.2 3.84 0.151 36.0
CLD7025H24X 24 18~26.5 0.11 2.64 4000 1.022 36.0 5.09 0.200 40.9
CLD7025HH24X 24 18~26.5 0.13 3.12 4500 1.147 40.5 6.29 0.248 43.0
CLD7025VH24X 24 18~26.5 0.16 3.84 5000 1.274 44.9 7.80 0.307 47.3
CLD7025M48X 48 36~54 0.045 2.16 3500 0.886 31.2 3.84 0.151 36.0
CLD7025H48X 48 36~54 0.055 2.64 4000 1.022 36.0 5.09 0.200 40.9
CLD7025HH48X 48 36~54 0.065 3.12 4500 1.147 40.5 6.29 0.248 43.0
CLD7025VH48X 48 36~54 0.08 3.84 5000 1.274 44.9 7.80 0.307 47.3
