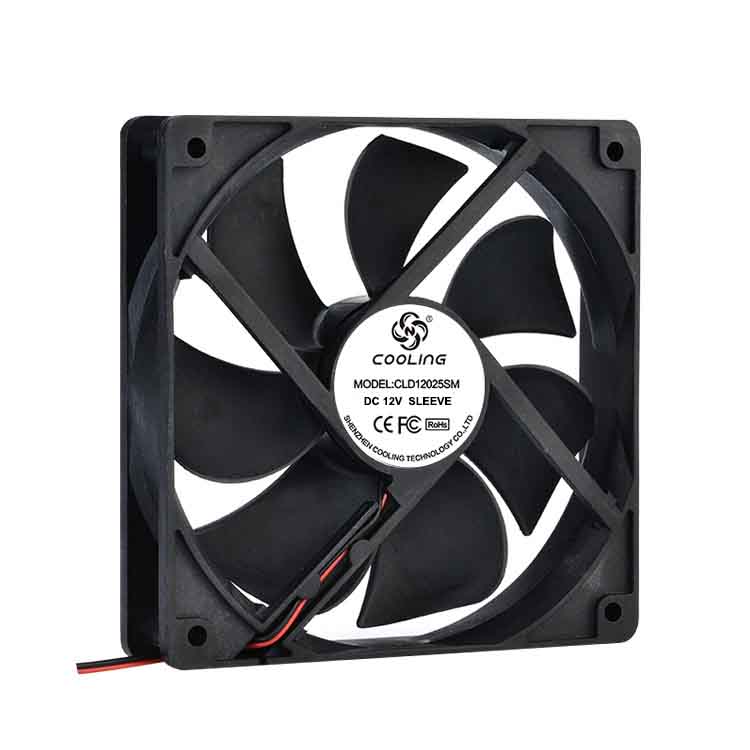

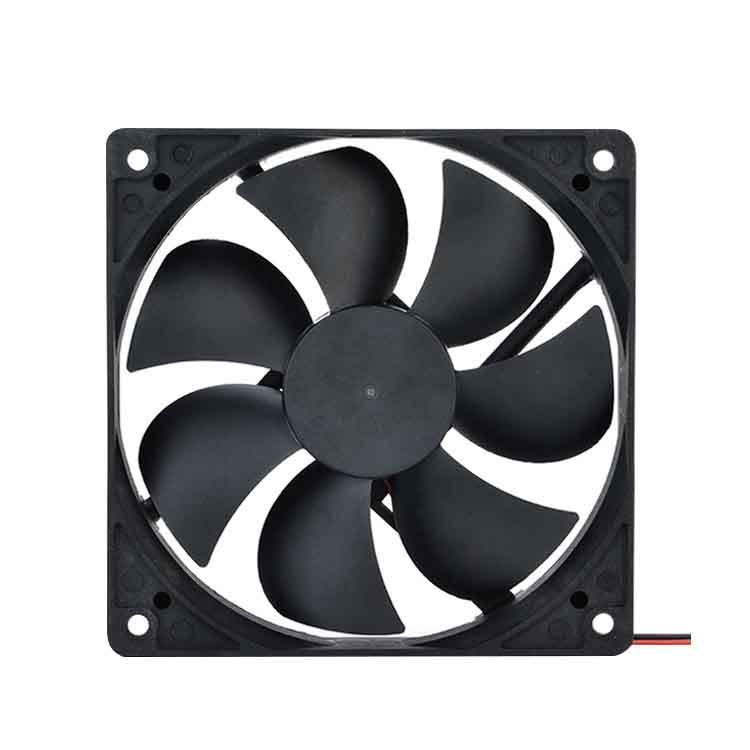

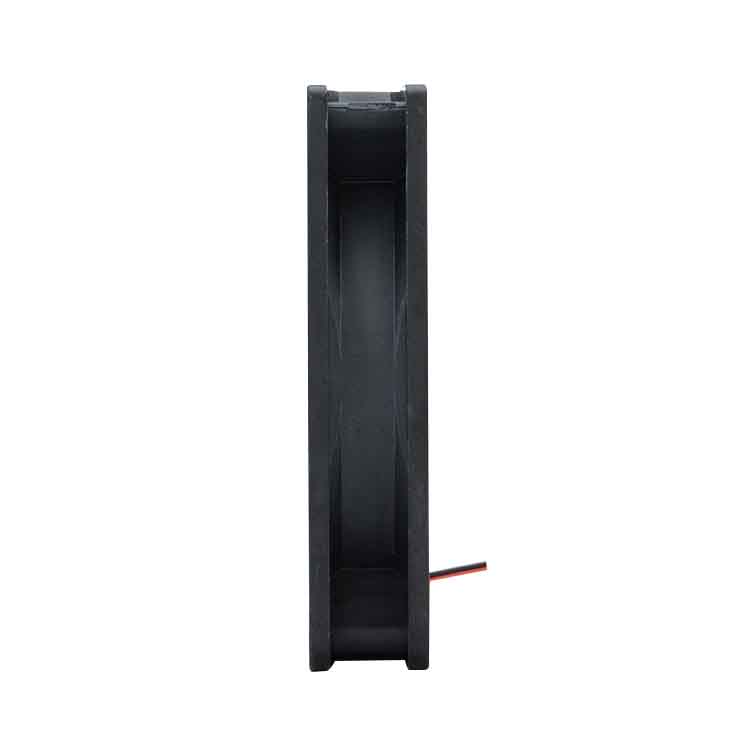

12025A 12V 24V 48VDC (120X120X25mm) Cooling Fan

  • Product description: 12025A - 120X120X25mm 12V 24V 48VDC Fan Sleeve/Hydraulic/Dual Ball Bearing 3.041m³/min 107CFM - DC Brushless fan & quiet cooling solutions from Cooling Technology.
  • INQUIRY

120X120X25mm 12V 24V 48VDC Cooling Fan


Product Attributes

l Size / Dimension: 120X120X25mm

l Voltage - Rated12VDC / 24VDC / 48VDC

l Bearing Type: Sleeve / Hydraulic / Dual Ball Bearing

l Air Flow: 1.82 ~ 3.041 m³/min(64.2 ~ 107 CFM

l Static Pressure: 1.76 ~ 5.04 mm H2O(0.069 ~ 0.198 in H2O

l Noise: 30.5 – 47.4 dB(A)

l RPM: 1500 ~ 3000 RPM

l Current Rating (Amps): 0.045 ~ 0.45A

l Voltage Range: 8 ~ 13.5VDC / 18 ~ 26.5VDC / 36 ~ 54VDC

l Material - Frame: Plastic (Flammability: UL94V-0)

l Material - Blade: Plastic (Flammability: UL94V-0)

l Power (Watts)2.16 ~ 5.4 W

l Weight: 150g


Certifications:

CE Listed

FCC Listed

REACH Compliant

Model Rated Voltage Operating Voltage Range Rated Current
Rated
Input Power
Speed Maximum Air Flow Maximum Air Pressure Noise
PART.NO. VDC VDC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A
CLD12025L12X 12 8~13.5 0.18 2.16 1500 1.820 64.2 1.76 0.069 30.5
CLD12025M12X 12 8~13.5 0.25 3.0 2000 2.171 76.6 2.43 0.096 36.5
CLD12025H12X 12 8~13.5 0.31 3.72 2500 2.617 92.4 3.98 0.157 42.1
CLD12025HH12X 12 8~13.5 0.45 5.4 3000 3.041 107. 5.04 0.198 47.4
CLD12025L24X 24 18~26.5 0.09 2.16 1500 1.820 64.2 1.76 0.069 30.5
CLD12025M 24X 24 18~26.5 0.125 3.0 2000 2.171 76.6 2.43 0.096 36.5
CLD12025H24X 24 18~26.5 0.155 3.72 2500 2.617 92.4 3.98 0.157 42.1
CLD12025HH 24X 24 18~26.5 0.225 5.4 3000 3.041 107. 5.04 0.198 47.4
CLD12025L48X 48 36~54 0.045 2.16 1500 1.820 64.2 1.76 0.069 30.5
CLD12025M48X 48 36~54 0.063 3.0 2000 2.171 76.6 2.43 0.096 36.5
CLD12025H48X 48 36~54 0.078 3.72 2500 2.617 92.4 3.98 0.157 42.1
CLD12025HH48X 48 36~54 0.112 5.4 3000 3.041 107. 5.04 0.198 47.4
