DC Axial Fan

  • 12038A 12V 24V 48VDC (120X120X38mm) Cooling Fan
  • 12038A 12V 24V 48VDC (120X120X38mm) Cooling Fan
  • 12038A 12V 24V 48VDC (120X120X38mm) Cooling Fan
  • 12038A 12V 24V 48VDC (120X120X38mm) Cooling Fan
12038A 12V 24V 48VDC (120X120X38mm) Cooling Fan12038A 12V 24V 48VDC (120X120X38mm) Cooling Fan12038A 12V 24V 48VDC (120X120X38mm) Cooling Fan12038A 12V 24V 48VDC (120X120X38mm) Cooling Fan

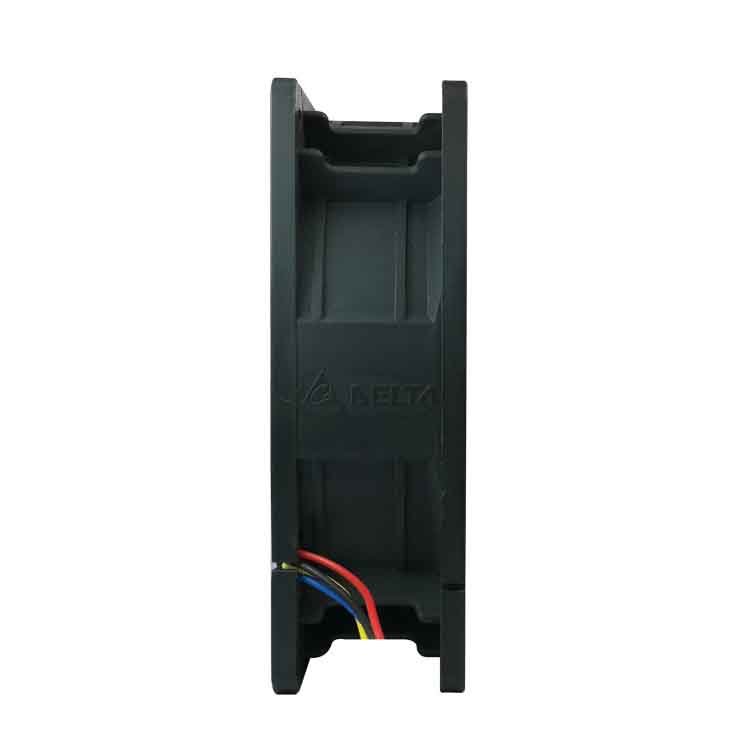

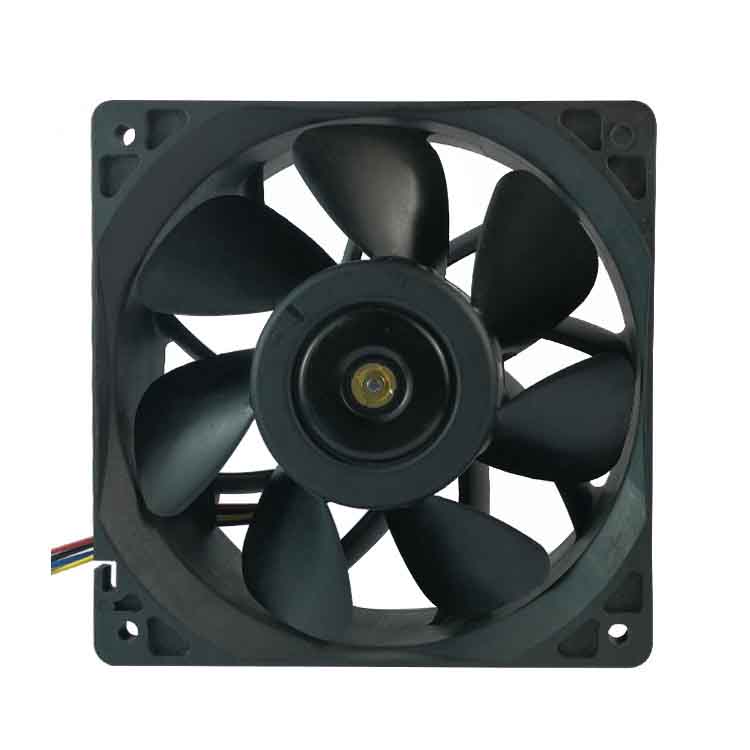

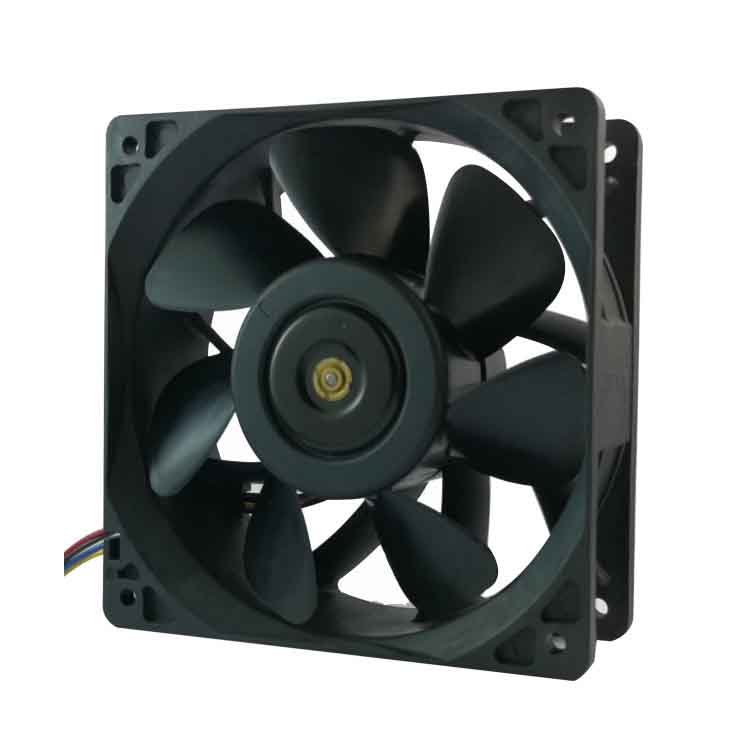

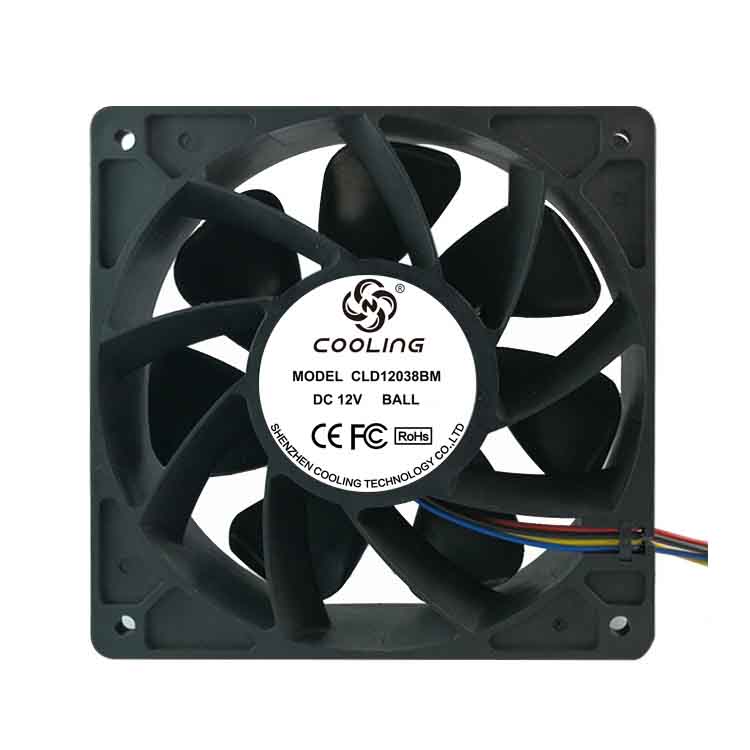

12038A 12V 24V 48VDC (120X120X38mm) Cooling Fan

  • Product description: 12038 UPS power supply cooling fan - 120X120X38mm 12V 24V 48V 3600RPM Sleeve/ Hydraulic/ Dual Ball Bearing
  • INQUIRY

120X120X38mm 12V 24V 48VDC Cooling Fan


Product Attributes

l Size / Dimension: 120X120X38mm

l Voltage - Rated12VDC / 24VDC / 48VDC

l Bearing Type: Sleeve / Hydraulic / Dual Ball

l Air Flow: 2.734 ~ 5.945 m³/min(96.55 ~ 209.92 CFM

l Static Pressure: 5.91 ~ 29.28 mm H2O(0.233 ~ 1.153 in H2O

l Noise: 43.4 – 65.2 dB(A)

l RPM: 2500 ~ 5500 RPM

l Current Rating (Amps): 0.075 ~ 2.0A

l Voltage Range: 8 ~ 13.5VDC / 18 ~ 26.5VDC / 36 ~ 54VDC

l Material - Frame: Plastic (Flammability: UL94V-0)

l Material - Blade: Plastic (Flammability: UL94V-0)

l Power (Watts)3.6 ~ 24 W

l Weight: 300g

Certifications:

CE Listed

FCC Listed

REACH Compliant


Model Rated Voltage Operating Voltage Range Rated Current
Rated
Input Power
Speed Maximum Air Flow Maximum Air Pressure Noise
PART.NO. VDC VDC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A
CLD12038L12X 12 8~13.5 0.3 3.6 2500 2.734 96.55 5.91 0.233 43.4
CLD12038M12X 12 8~13.5 0.6 7.2 3000 3.151 111.26 8.66 0.341 47.7
CLD12038VM12X 12 8~13.5 0.9 10.8 3500 3.742 132.14 11.94 0.470 52.8
CLD12038H12X 12 8~13.5 1.2 14.4 4000 4.330 152.89 15.46 0.609 54.5
CLD12038HH12X 12 8~13.5 1.5 18 4500 4.797 169.37 19.73 0.777 58.1
CLD12038VH12X 12 8~13.5 1.8 21.6 5000 5.380 189.97 24.40 0.961 62.1
CLD12038HV12X 12 8~13.5 2.0 24 5500 5.945 209.92 29.28 1.153 65.2
CLD12038L24X 24 18~26.5 0.15 3.6 2500 2.734 96.55 5.91 0.233 43.4
CLD12038M24X 24 18~26.5 0.3 7.2 3000 3.151 111.26 8.66 0.341 47.7
CLD12038VM24X 24 18~26.5 0.45 10.8 3500 3.742 132.14 11.94 0.470 52.8
CLD12038H24X 24 18~26.5 0.6 14.4 4000 4.330 152.89 15.46 0.609 54.5
CLD12038HH24X 24 18~26.5 0.75 18 4500 4.797 169.37 19.73 0.777 58.1
CLD12038VH24X 24 18~26.5 0.9 21.6 5000 5.380 189.97 24.40 0.961 62.1
CLD12038HV24X 24 18~26.5 1.0 24 5500 5.945 209.92 29.28 1.153 65.2
CLD12038L48X 48 36~54 0.075 3.6 2500 2.734 96.55 5.91 0.233 43.4
CLD12038M48X 48 36~54 0.15 7.2 3000 3.151 111.26 8.66 0.341 47.7
CLD12038VM48X 48 36~54 0.225 10.8 3500 3.742 132.14 11.94 0.470 52.8
CLD12038H48X 48 36~54 0.3 14.4 4000 4.330 152.89 15.46 0.609 54.5
CLD12038HH48X 48 36~54 0.375 18 4500 4.797 169.37 19.73 0.777 58.1
CLD12038VH48X 48 36~54 0.45 21.6 5000 5.380 189.97 24.40 0.961 62.1
CLD12038HV48X 48 36~54 0.5 24 5500 5.945 209.92 29.28 1.153 65.2
