DC Axial Fan

  • 25489 12V 24V 48VDC (Ø254x89mm) Cooling Fan

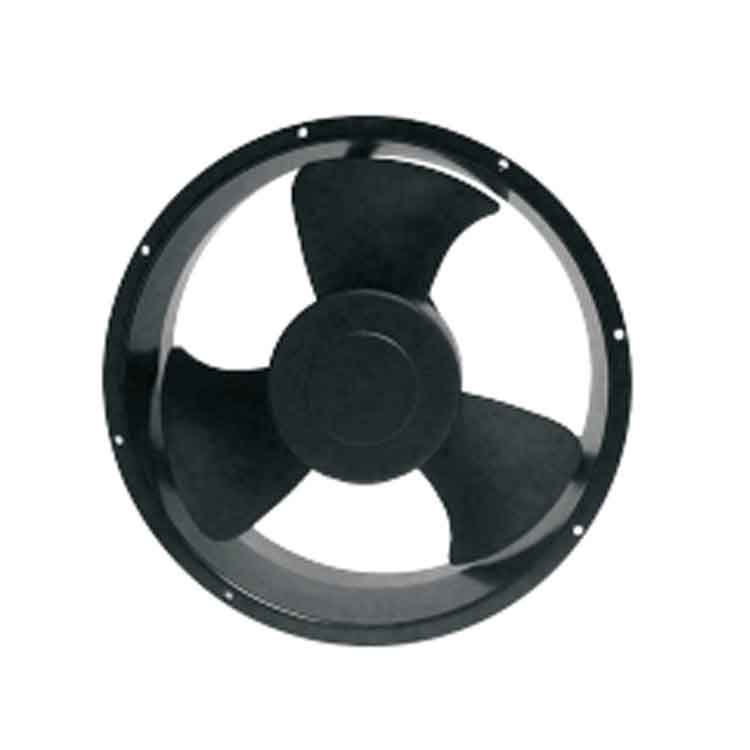

25489 12V 24V 48VDC (Ø254x89mm) Cooling Fan

25489 12V 24V 48VDC (Ø254x89mm) Cooling Fan

  • Product description: 25489 - Ø254x89mm 12V 24V 48VDC Axial Fan with Dual Ball Bearing 36.81m³/min 1296.4CFM - DC Brushless Axial fan and quiet cooling solutions from Cooling Technology.
  • INQUIRY

Ø254x89mm 12V 24V 48VDC Cooling Fan


Product Attributes

l Size / Dimension: Ø254x89mm

l Voltage - Rated12VDC / 24VDC / 48VDC

l Bearing Type: Dual Ball Bearing

l Air Flow: 8.67 ~36.81 m³/min(305.3 ~ 1296.4 CFM

l Static Pressure: 11.80 ~ 42.1 mm H2O(0.46 ~ 1.66 in H2O

l Noise: 53.4 – 89.6 dB(A)

l RPM: 1000 ~ 4000 RPM

l Current Rating (Amps): 0.2 ~ 5.5A

l Voltage Range: 7 ~ 13.5VDC / 18 ~ 26.5VDC / 36 ~ 54VDC

l Material - Frame: Aluminum (Flammability: UL94V-0)

l Material - Blade: Plastic (Flammability: UL94V-0)

l Power (Watts)9 ~ 192 W

l Weight: 2600g



Certifications:

CE Listed

FCC Listed

REACH Compliant


Model Rated Voltage Operating Voltage Range Rated Current
Rated
Input Power
Speed Maximum Air Flow Maximum Air Pressure Noise
PART.NO. VDC VDC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A
CLD25489L24X 12 7~13.5 0.75 9 1000 8.67 305.3 11.80 0.46 53.4
CLD25489M24X 12 7~13.5 3.5 42 2000 15.58 548.6 15.4 0.61 66.1
CLD25489H24X 12 7~13.5 5.5 66 2500 19.64 691.8 24.7 0.97 71.2
CLD25489L24X 24 18~26.5 0.5 12 1000 8.67 305.3 11.80 0.46 53.4
CLD25489M24X 24 18~26.5 1.5 36 2000 15.58 548.6 15.4 0.61 66.1
CLD25489H24X 24 18~26.5 2.9 69.6 2500 19.64 691.8 24.7 0.97 71.2
CLD25489HH24X 24 18~26.5 3.7 88.8 3000 24.07 847.8 32.6 1.28 75.6
CLD25489VH24X 24 18~26.5 5.7 136.8 3500 29.40 1035.6 38.6 1.52 80.4
CLD25489HV24X 24 18~26.5 7.8 187.2 4000 36.81 1296.4 42.1 1.66 89.6
CLD25489L48X 48 36~54 0.2 9.6 1000 8.67 305.3 11.80 0.46 53.4
CLD25489M48X 48 36~54 0.8 38.4 2000 15.58 548.6 15.4 0.61 66.1
CLD25489H48X 48 36~54 1.4 67.2 2500 19.64 691.8 24.7 0.97 71.2
CLD25489HH48X 48 36~54 1.9 91.2 3000 24.07 847.8 32.6 1.28 75.6
CLD25489VH48X 48 36~54 3 144 3500 29.40 1035.6 38.6 1.52 80.4
CLD25489HV48X 48 36~54 4 192 4000 36.81 1296.4 42.1 1.66 89.6
