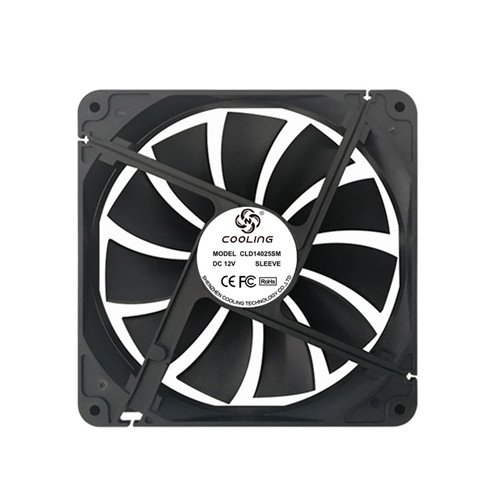

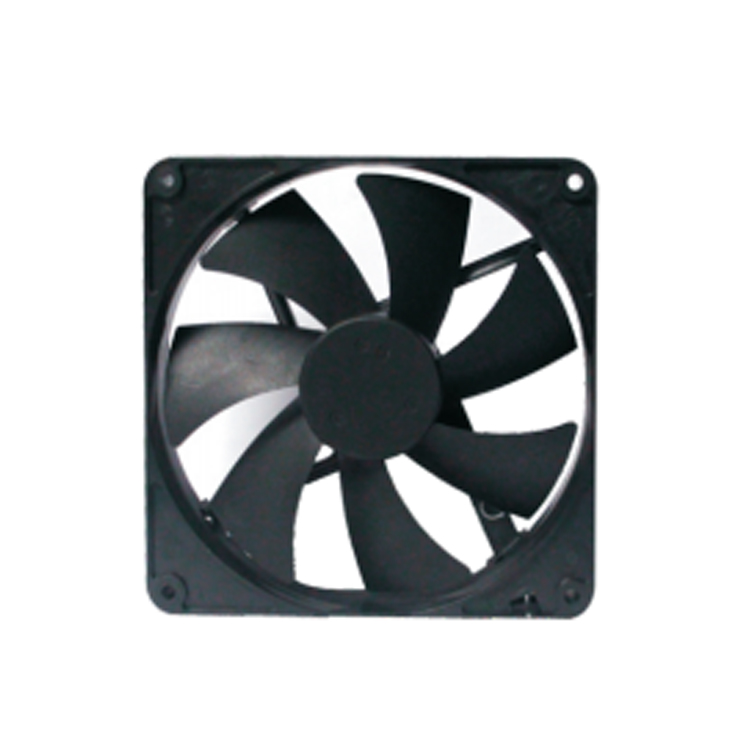

14025 12V 24VDC (140X140X25mm) Cooling Fan

  • Product description: 14025 - 140X140X25mm 12V 24VDC Axial Fan Sleeve/Hydraulic/Dual Ball Bearing 4.84m³/min 170.4CFM - DC Brushless fan & quiet cooling solutions from Cooling Technology.
  • INQUIRY

140X140X25mm 12V 24VDC Cooling Fan



Product Attributes

l Size / Dimension: 140X140X25mm

l Voltage - Rated12VDC / 24VDC

l Bearing Type: Sleeve / Hydraulic / Dual Ball Bearing

l Air Flow: 2.16 ~ 4.84 m³/min(76.1 ~ 170.4 CFM

l Static Pressure: 1.7 ~ 6.6 mm H2O(0.07 ~ 0.26 in H2O

l Noise: 38.8 – 56.2 dB(A)

l RPM: 1500 ~ 3500 RPM

l Current Rating (Amps): 0.11 ~ 0.95A

l Voltage Range: 7 ~ 13.5VDC / 18 ~ 26.5VDC

l Material - Frame: Plastic (Flammability: UL94V-0)

l Material - Blade: Plastic (Flammability: UL94V-0)

l Power (Watts)2.28 ~ 10.8 W

l Weight: 166.8g



Certifications:

CE Listed

FCC Listed

REACH Compliant

Model Rated Voltage Operating Voltage Range Rated Current Rated Input Power Speed Maximum Air Flow Air Pressure Noise Level
PART NO. VDC VDC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A
CLD14025L12 12 7~13.5 0.19 2.28 1500 2.16 76.1 1.7 0.07 38.8
CLD14025M12 12 7~13.5 0.39 4.68 2000 2.54 97.5 2.7 0.11 43.9
CLD14025H12 12 7~13.5 0.68 8.16 2500 2.77 124.6 4 0.16 47.5
CLD14025HH12 12 7~13.5 0.8 9.6 3000 4.3 151.4 5.2 0.2 50.8
CLD14025VH12 12 7~13.5 0.95 11.4 3500 4.84 170.4 6.6 0.26 56.2
CLD14025L24 24 18~26.5 0.11 2.64 1500 2.16 76.1 1.7 0.07 38.8
CLD14025M24 24 18~26.5 0.18 4.32 2000 2.54 97.5 2.7 0.11 43.9
CLD14025H24 24 18~26.5 0.33 7.92 2500 2.77 124.6 4 0.16 47.5
CLD14025HH24 24 18~26.5 0.36 8.64 3000 4.3 151.4 5.2 0.2 50.8
CLD14025VH24 24 18~26.5 0.45 10.8 3500 4.84 170.4 6.6 0.26 56.2
