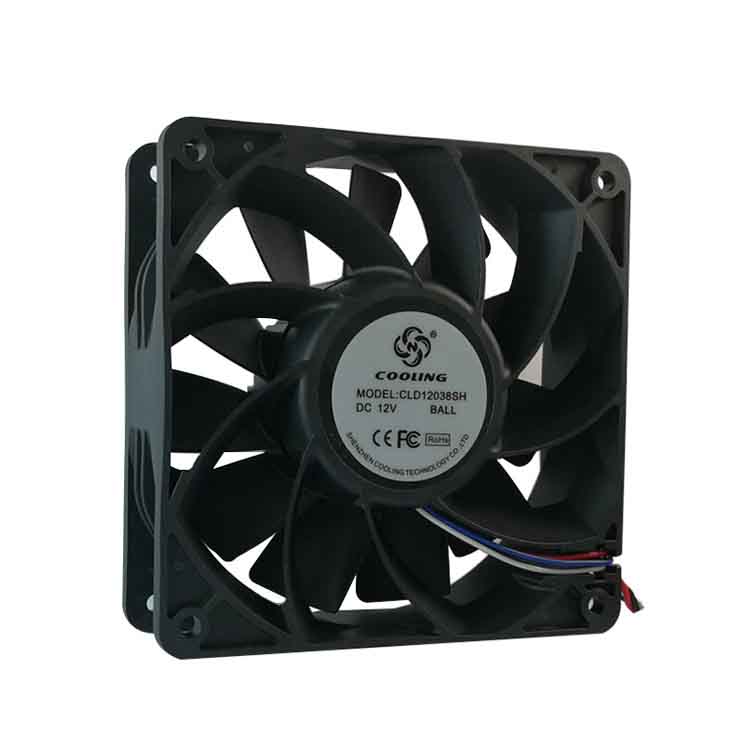

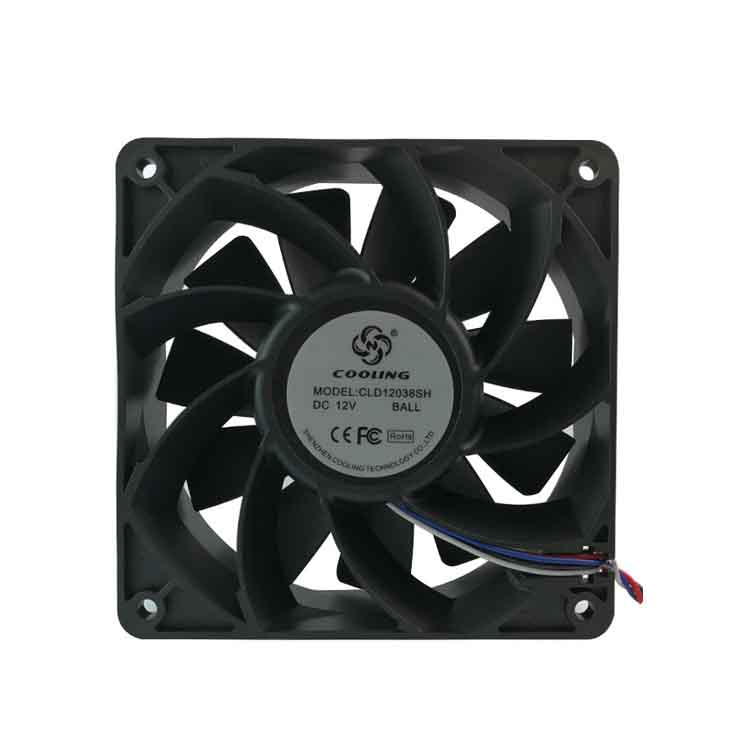

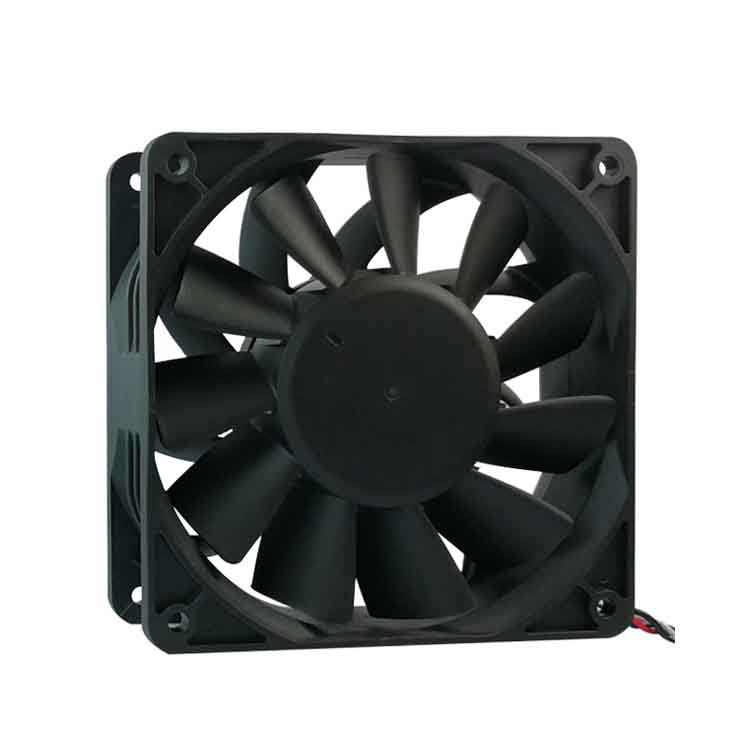

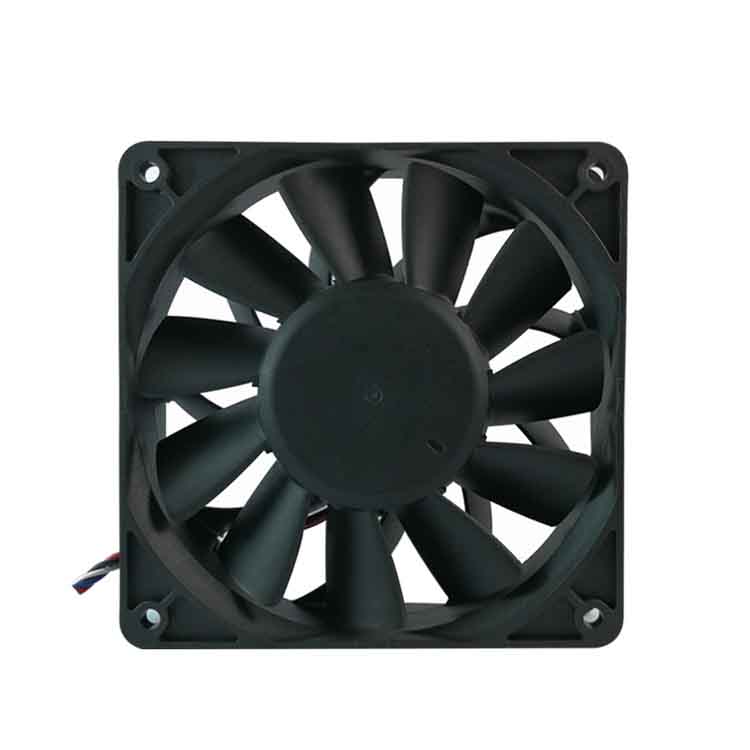

12038B 12V 24V 48VDC (120X120X38mm) Cooling Fan

  • Product description: 12038B - 120X120X38mm 12V 24V 48V Fan Sleeve/Hydraulic/Dual Ball Bearing 7.037m³/min 248.46CFM - DC Brushless fan & quiet cooling solutions from Cooling Technology.
  • INQUIRY

12038B 120X120X38mm 12V 24V 48VDC Cooling Fan


Product Attributes

l Size / Dimension: 120X120X38mm

l Voltage - Rated12VDC / 24VDC / 48VDC

l Bearing Type: Sleeve / Hydraulic / Dual Ball Bearing

l Air Flow: 3.067 ~ 7.037 m³/min(108.28 ~ 248.46 CFM

l Static Pressure: 7.16 ~ 33.14 mm H2O(0.282 ~ 1.305 in H2O

l Noise: 52.4 – 71.9 dB(A)

l RPM: 2500 ~ 5500 RPM

l Current Rating (Amps): 0.09 ~ 3.0A

l Voltage Range: 8 ~ 13.5VDC / 18 ~ 26.5VDC / 36 ~ 54VDC

l Material - Frame: Plastic (Flammability: UL94V-0)

l Material - Blade: Plastic (Flammability: UL94V-0)

l Power (Watts)4.2 ~ 36 W

l Weight: 302g



Certifications:

CE Listed

FCC Listed

REACH Compliant


Model Rated Voltage Operating Voltage Range Rated Current
Rated
Input Power
Speed Maximum Air Flow Maximum Air Pressure Noise
PART.NO. VDC VDC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A
CLD12038L12X 12 8~13.5 0.35 4.2 2500 3.067 108.28 7.16 0.282 52.4
CLD12038M12X 12 8~13.5 0.85 10.2 3000 3.728 131.62 10.43 0. 411 56.0
CLD12038VM12X 12 8~13.5 1.38 16.6 3500 4.458 157.40 14.20 0.559 57.6
CLD12038H12X 12 8~13.5 1.9 22.8 4000 5.092 179.80 18.15 0.715 62.4
CLD12038HH12X 12 8~13.5 2.4 28.8 4500 5.686 200.78 22.96 0.904 66.7
CLD12038VH12X 12 8~13.5 2.8 33.6 5000 6.389 225.59 28.02 1.103 69.8
CLD12038HV12X 12 8~13.5 3.0 36.0 5500 7.037 248.46 33.14 1.305 71.9
CLD12038L24X 24 18~26.5 0.175 4.2 2500 3.067 108.28 7.16 0.282 52.4
CLD12038M24X 24 18~26.5 0.425 10.2 3000 3.728 131.62 10.43 0. 411 56.0
CLD12038VM24X 24 18~26.5 0.7 16.6 3500 4.458 157.40 14.20 0.559 57.6
CLD12038H24X 24 18~26.5 0.95 22.8 4000 5.092 179.80 18.15 0.715 62.4
CLD12038HH24X 24 18~26.5 1.2 28.8 4500 5.686 200.78 22.96 0.904 66.7
CLD12038VH24X 24 18~26.5 1.4 33.6 5000 6.389 225.59 28.02 1.103 69.8
CLD12038HV24X 24 18~26.5 1.5 36.0 5500 7.037 248.46 33.14 1.305 71.9
CLD12038L48X 48 36~54 0.09 4.2 2500 3.067 108.28 7.16 0.282 52.4
CLD12038M48X 48 36~54 0.21 10.2 3000 3.728 131.62 10.43 0. 411 56.0
CLD12038VM48X 48 36~54 0.345 16.6 3500 4.458 157.40 14.20 0.559 57.6
CLD12038H48X 48 36~54 0.475 22.8 4000 5.092 179.80 18.15 0.715 62.4
CLD12038HH48X 48 36~54 0.6 28.8 4500 5.686 200.78 22.96 0.904 66.7
CLD12038VH48X 48 36~54 0.7 33.6 5000 6.389 225.59 28.02 1.103 69.8
CLD12038HV48X 48 36~54 0.75 36.0 5500 7.037 248.46 33.14 1.305 71.9
