AC Cooling Fan

  • 15050 110V 220V 380VAC (150x150x50mm) Cooling Fan
  • 15050 110V 220V 380VAC (150x150x50mm) Cooling Fan
  • 15050 110V 220V 380VAC (150x150x50mm) Cooling Fan
15050 110V 220V 380VAC (150x150x50mm) Cooling Fan15050 110V 220V 380VAC (150x150x50mm) Cooling Fan15050 110V 220V 380VAC (150x150x50mm) Cooling Fan

15050 110V 220V 380VAC (150x150x50mm) Cooling Fan

  • Product description: 15050 - 150x150x50mm 110V 220V 380VAC Fan Sleeve/ Dual Ball Bearing 5.4m³/min 196CFM - AC Brushless Axial fan and quiet cooling solutions from Cooling Technology.
  • INQUIRY

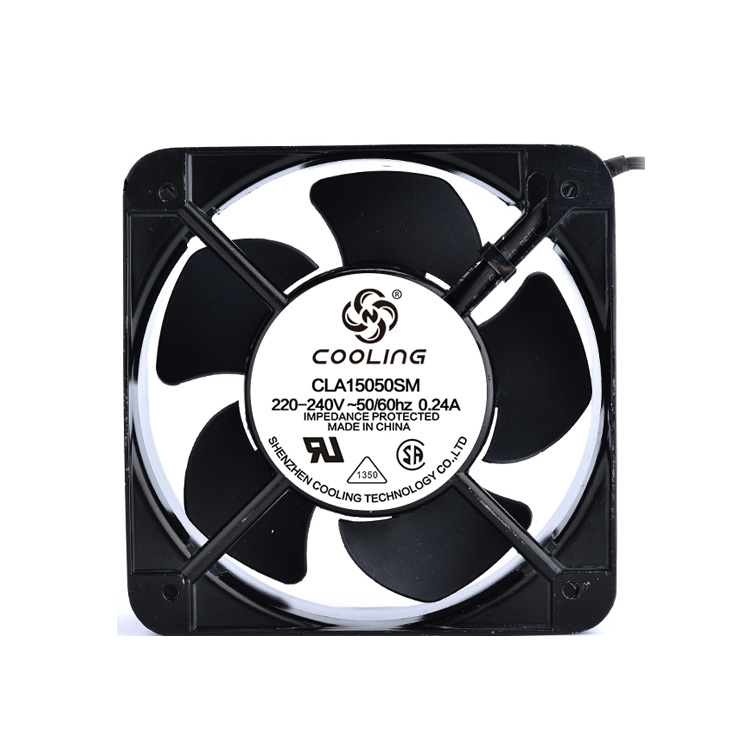

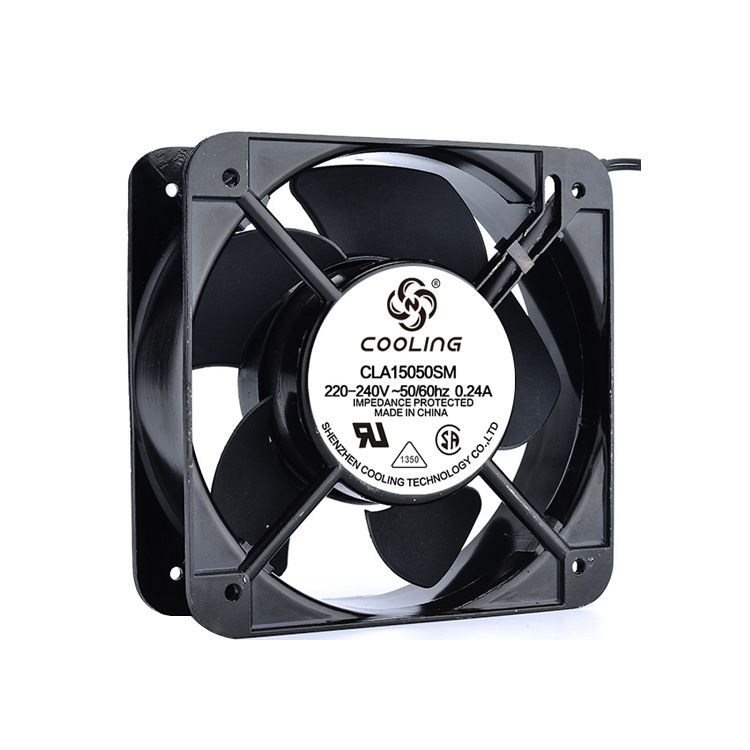

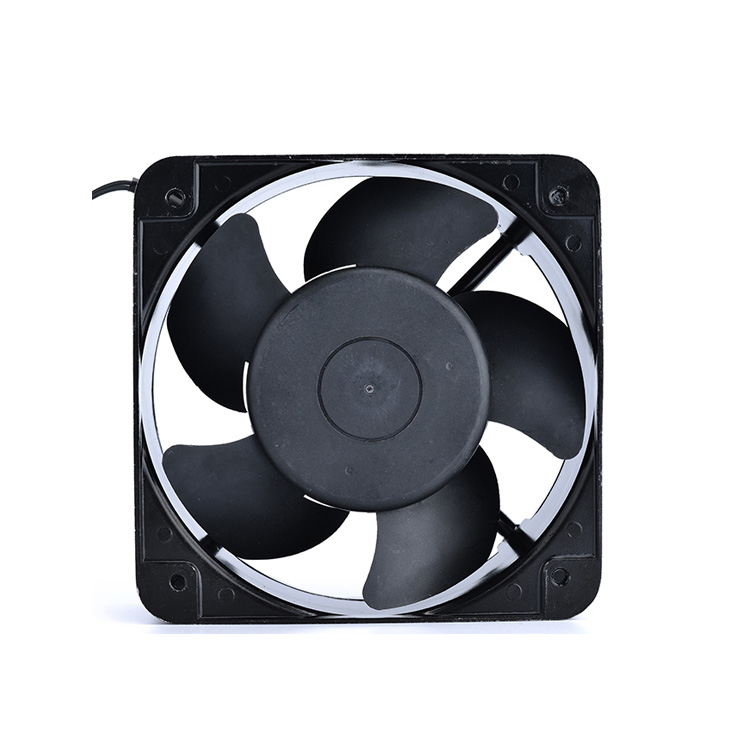

150x150x50mm 110V 220V 380VAC Cooling Fan


Product Attributes

Size / Dimension: 150x150x50mm

Voltage - Rated110VAC / 220VAC / 380VAC

Bearing Type: Sleeve / Dual Ball Bearing

Air Flow: 3.84 ~ 5.4 m³/min(137 ~ 196 CFM

Static Pressure: 3.0 ~ 14.0 mm H2O(0.1 ~ 0.5 in H2O

Noise: 39 - 56 dB(A)

RPM: 2100 ~ 3000 RPM

Current Rating (Amps): 0.12 ~ 0.45A

Voltage Range: 100 ~ 125VAC / 220 ~ 240VAC / 360-400VAC

Material - Frame: Aluminum (Flammability: UL94V-0)

Material - Blade: Plastic (Flammability: UL94V-0)

Power (Watts)20 ~ 38 W

Weight: 800g



Certifications:

CE Listed

FCC Listed

REACH Compliant

Model Rated Voltage Operating Voltage Range Rated Current
Rated
Input Power
Speed Maximum Air Flow Maximum Air Pressure Noise
PART.NO. VAC VAC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A
CLA15050H03X 380 360-400 0.13 38/36 2600/3000 4.76/5.4 170/196 11.5/14.0 0.45/0.5 49/56
CLA15050H02X 220 220-240 0.23 38/36 2600/3000 4.76/5.4 170/196 11.5/14.0 0.45/0.5 49/56
CLA15050M02X 220 220-240 0.18 28/27 2400/2600 4.34/4.7 155/170 7.5/9.7 0.30/0.3 45/49
CLA15050L02X 220 220-240 0.12 21/20 2100/2400 3.84/4.3 137/155 3.0/3.9 0.12/0.1 39/45
CLA15050H01X 110 100-125 0.45 38/36 2600/3000 4.76/5.4 170/196 11.5/14.0 0.45/0.5 49/56
CLA15050M01X 110 100-125 0.30 28/27 2400/2600 4.34/4.7 155/170 7.5/9.7 0.30/0.3 45/49
CLA15050L01X 110 100-125 0.15 21/20 2100/2400 3.84/4.3 137/155 3.0/3.9 0.12/0.1 39/45
