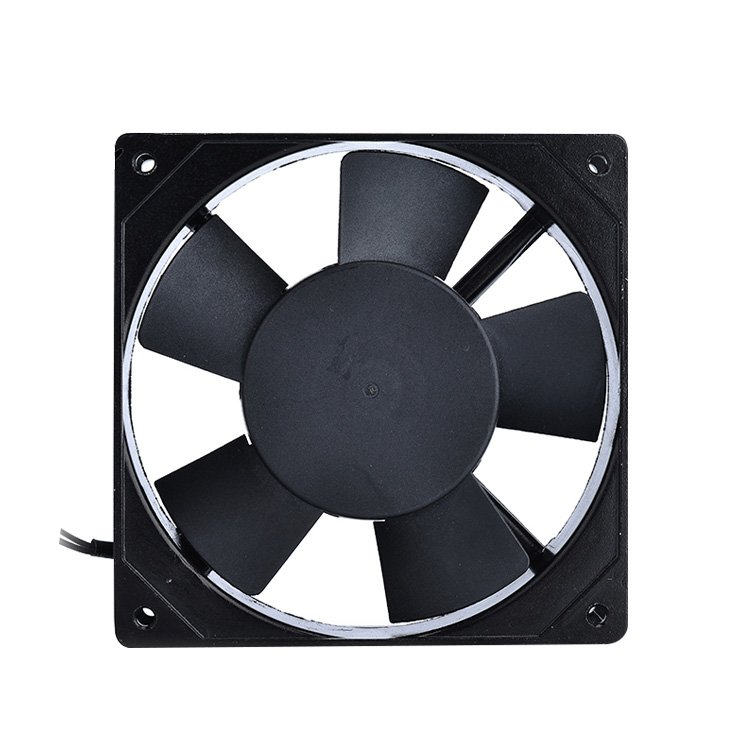

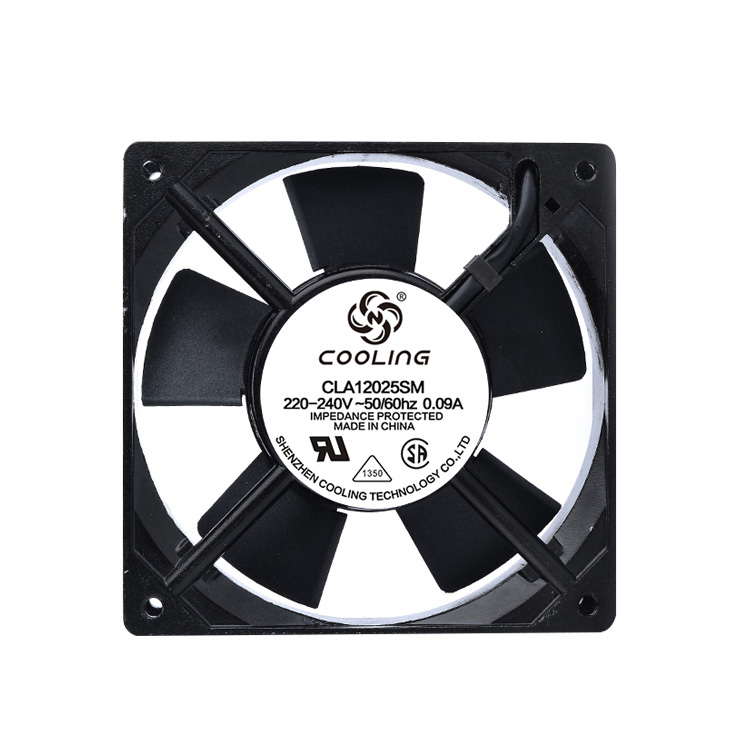

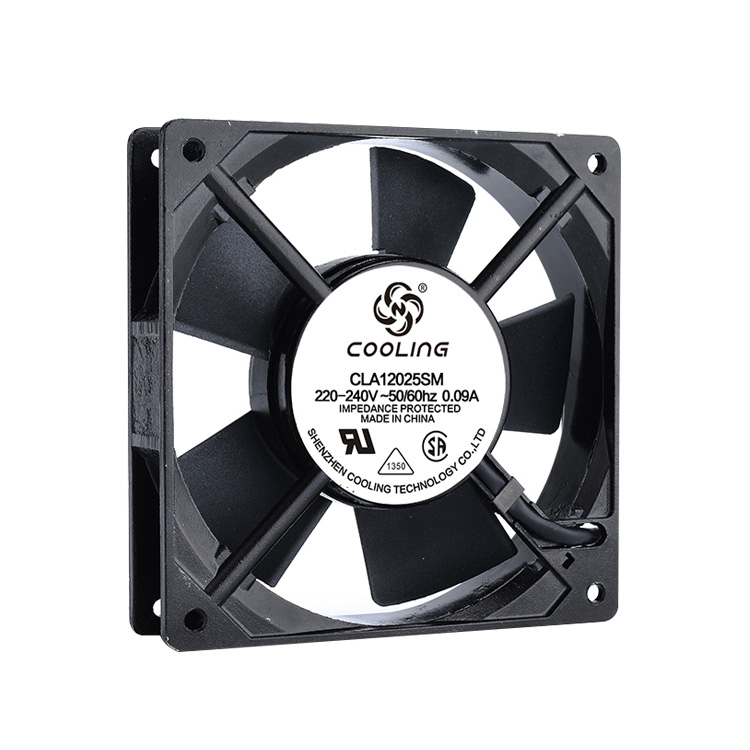

AC Cooling Fan

  • 12025 110V 220VAC (120x120x25mm) Cooling Fan
  • 12025 110V 220VAC (120x120x25mm) Cooling Fan
  • 12025 110V 220VAC (120x120x25mm) Cooling Fan
12025 110V 220VAC (120x120x25mm) Cooling Fan12025 110V 220VAC (120x120x25mm) Cooling Fan12025 110V 220VAC (120x120x25mm) Cooling Fan

12025 110V 220VAC (120x120x25mm) Cooling Fan

  • Product description: 12025 - 120x120x25mm 110V 220VAC Axial Fan Sleeve/ Dual Ball Bearing 2.2m³/min 78CFM - AC Brushless Axial fan and quiet cooling solutions from Cooling Technology.
  • INQUIRY

120x120x25mm 110V 220VAC Cooling Fan


Product Attributes

l Size / Dimension: 120x120x25mm

l Voltage - Rated110VAC / 220VAC

l Bearing Type: Sleeve / Dual Ball Bearing

l Air Flow: 1.3 ~ 2.2 m³/min(48 ~ 78 CFM

l Static Pressure: 2.68 ~ 4.06 mm H2O(0.1 ~ 0.14 in H2O

l Noise: 29 - 40 dB(A)

l RPM: 1700 ~ 2400 RPM

l Current Rating (Amps): 0.13 ~ 0.19A

l Voltage Range: 100 ~ 125VAC / 220 ~ 240VAC

l Material - Frame: Aluminum (Flammability: UL94V-0)

l Material - Blade: Plastic (Flammability: UL94V-0)

l Power (Watts)13 ~ 19 W

l Weight: 320g



Certifications:

CE Listed

FCC Listed

REACH Compliant



Model Rated Voltage Operating Voltage Range Rated Current Rated Input Power Speed Maximum Air Flow Air Pressure Noise Level
PART NO. VAC VAC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A
CLA12025H01 110 100-125 0.19 19/18 2200/2400 1.86/2.2 66/78 3.56/4.06 0.14 38/40
CLA12025M01 110 100-125 0.16 16/15 2000/2000 1.64/1.6 58/58 3.0/3.2 0.11 35/35
CLA12025L01 110 100-125 0.13 14/13 1800/1700 1.41/1.3 50/48 2.78/2.68 0.1 30/29
CLA12025H02 220 220-240 0.19 19/18 2200/2400 1.86/2.2 66/78 3.56/4.06 0.14 38/40
CLA12025M02 220 220-240 0.16 16/15 2000/2000 1.64/1.6 58/58 3.0/3.2 0.11 35/35
CLA12025L02 220 220-240 0.13 14/13 1800/1700 1.41/1.3 50/48 2.78/2.68 0.1 30/29
