DC Axial Fan

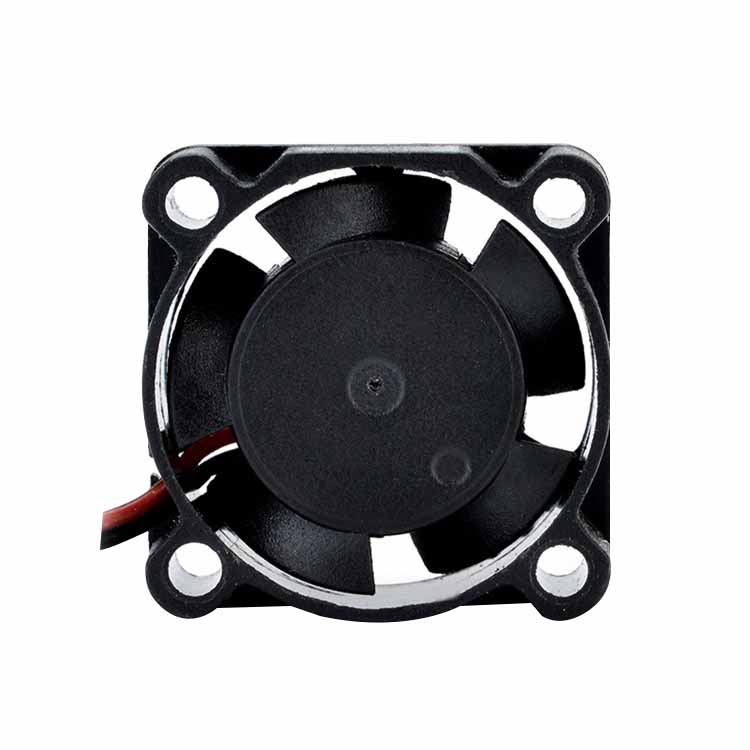

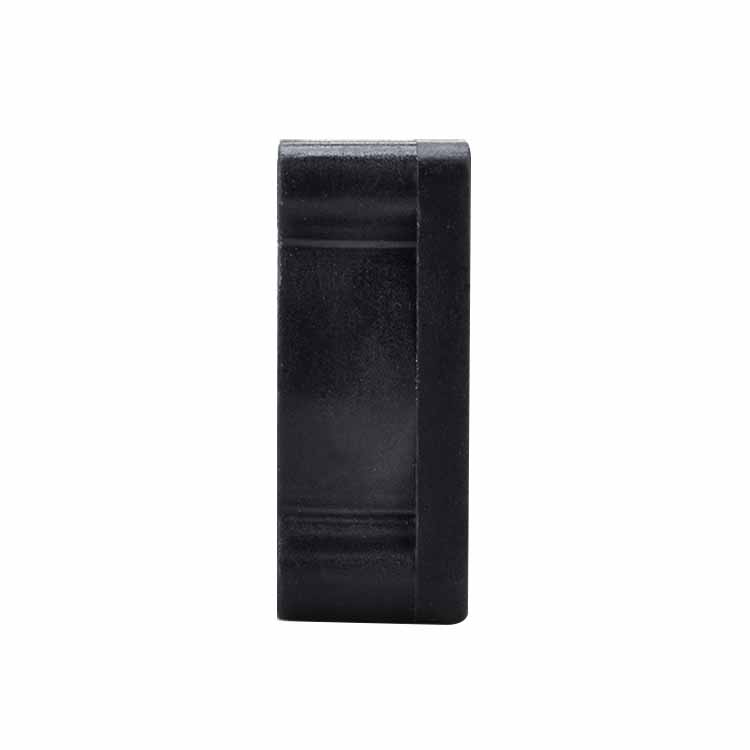

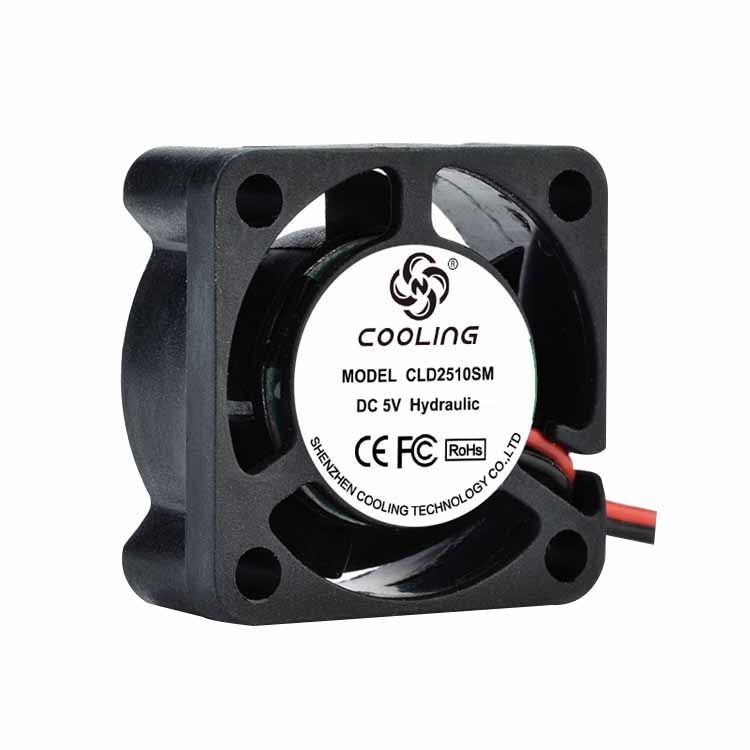

  • 2510 5V 12VDC (25X25X10mm) Cooling Fan
  • 2510 5V 12VDC (25X25X10mm) Cooling Fan
  • 2510 5V 12VDC (25X25X10mm) Cooling Fan
2510 5V 12VDC (25X25X10mm) Cooling Fan2510 5V 12VDC (25X25X10mm) Cooling Fan2510 5V 12VDC (25X25X10mm) Cooling Fan

2510 5V 12VDC (25X25X10mm) Cooling Fan

  • Product description: 2510 - DC Axial Fan 25X25X10mm 5V 12VDC Sleeve/Hydraulic/Ball Bearing 0.074m³/min 2.63CFM - DC brushless axial fans and quiet cooling solutions from Cooling Technology.
  • INQUIRY

25x25x10mm 5V 12VDC Cooling Fan


Product Attributes

       l Size / Dimension: 25x25x10mm
l Voltage - Rated5VDC / 12VDC
l Bearing Type: Sleeve / Hydraulic / Ball Bearing
l Air Flow: 0.029 ~ 0.074 m³/min(1.01 ~ 2.63 CFM
l Static Pressure: 1.86 ~ 8.73 mm H2O(0.073 ~ 0.344 in H2O
l Noise: 17.8 / 37.6 dB(A)
l RPM: 8500 ~ 16000 RPM
l Current Rating (Amps): 0.06 ~ 0.24A
l Voltage Range: 1.8 ~ 3 ~6VDC / 8.5 ~ 13.5VDC
l Material - Frame: Plastic (Flammability: UL94V-0)
l Material - Blade: Plastic (Flammability: UL94V-0)
l Power (Watts)0.72 ~ 1.2 W
l Weight: 7g

Certifications:


CE & FCC Listed

REACH Compliant


Model Rated Voltage Operating Voltage Range Rated Current
Rated
Input Power
Speed Maximum Air Flow Maximum Air Pressure Noise
PART.NO. VDC VDC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A
CLD2510L05X 5 1.8~3~6 0.14 0.72 8500 0.029 1.01 1.86 0.073 17.8
CLD2510M05X 5 1.8~3~6 0.17 0.84 10500 0.041 1.44 3.24 0.128 27.2
CLD2510H05X 5 1.8~3~6 0.19 0.96 12000 0.049 1.72 3.88 0.153 28.9
CLD2510HH05X 5 1.8~3~6 0.22 1.08 13500 0.067 2.35 6.87 0.270 32.9
CLD2510VH05X 5 1.8~3~6 0.24 1.2 16000 0.074 2.63 8.73 0.344 37.6
CLD2510L12X 12 8.5~13.5 0.06 0.72 8500 0.029 1.01 1.86 0.073 17.8
CLD2510M12X 12 8.5~13.5 0.07 0.84 10500 0.041 1.44 3.24 0.128 27.2
CLD2510H12X 12 8.5~13.5 0.08 0.96 12000 0.049 1.72 3.88 0.153 28.9
CLD2510HH12X 12 8.5~13.5 0.09 1.08 13500 0.067 2.35 6.87 0.270 32.9
CLD2510VH12X 12 8.5~13.5 0.1 1.2 16000 0.074 2.63 8.73 0.344 37.6
