  • 225MM 12V 24V 48VDC Centrifugal Fan

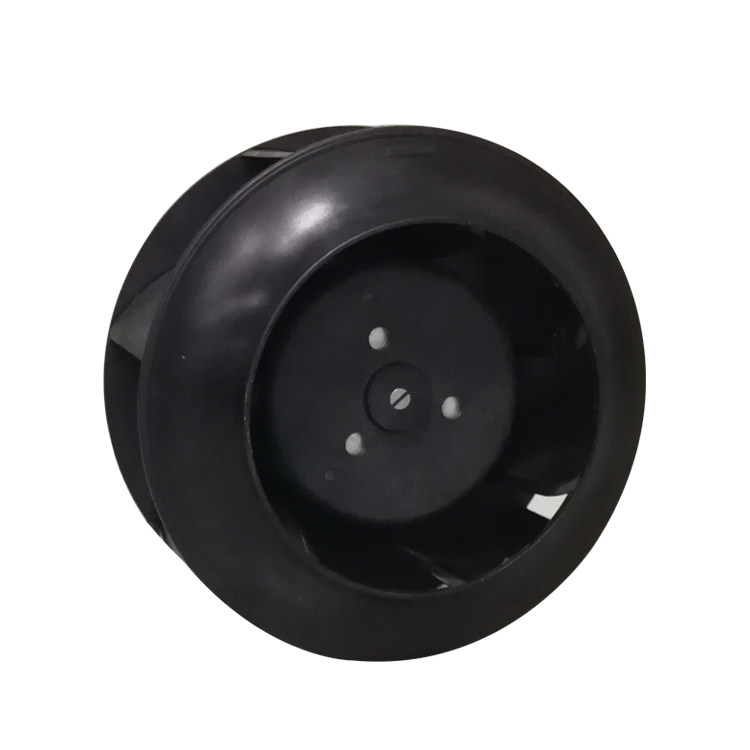

225MM 12V 24V 48VDC Centrifugal Fan

225MM 12V 24V 48VDC Centrifugal Fan

  • Product description: 225mm 12V 24V 48V DC Centrifugal Fan with Dual Ball Bearing 17.08m³/min 604.60CFM - DC Brushless fan & quiet cooling solutions from Cooling Technology.
  • INQUIRY

225mm 12V 24V 48VDC Centrifugal Fan

Product Attributes

l Size / Dimension: φ225mm

l Voltage - Rated12VDC / 24VDC / 48VDC

l Bearing Type: Dual Ball Bearing

l Air Flow: 17.08 m³/min(604.60 CFM

l Static Pressure: 42.60 mm H2O(1.68 in H2O

l Noise: 55.0 dB(A)

l RPM: 2200 RPM

l Current Rating (Amps): 2.8-5.40Amp

l Voltage Range: 7 ~ 14VDC / 15 ~ 27VDC / 30 ~ 57VDC

l Material - Frame: Aluminum

l Material - Blade: PA66

l Power (Watts)33.6 ~ 64.8 W

l Weight: 3210g

Certifications:

CE Listed

FCC Listed

REACH Compliant

Model Rated Voltage Operating Voltage Range Rated Current Rated Input Power Speed Maximum Air Flow Air Pressure Noise Level
PART NO. VDC VDC Amp Watt R.P.M M³/min CFM mmH2O InH2O dB-A
CLB225B12L 12 7~14 2.80 33.6 1800 14.23 503.87 29.58 1.16 42.5
CLB225B12M 12 7~14
5.40 64.8 2200 17.08 604.60 42.60 1.68 55.0
CLB225B24L 24 15~27 1.40 33.6 1800 14.23 503.87 29.58 1.16 42.5
CLB225B24M 24 15~27
2.70 64.8 2200 17.08 604.60 42.60 1.68 55.0
CLB225B24H 24 15~27
4.30 130.2 2600 19.93 705.37 57.92 2.28 68.2
CLB225B24V 24 15~27
6.50 156.0 3000 22.77 806.14 75.74 2.98 79.6
CLB225B48L 48 30~57 0.74 35.5 1800 14.23 503.87 29.58 1.16 42.5
CLB225B48M 48 30~57 1.35 64.8 2200 17.08 604.60 42.60 1.68 55.0
CLB225B48H 48 30~57
2.13 102.2 2600 19.93 705.37 57.92 2.28 68.2
CLB225B48V 48 30~57 3.16 151.7 3000 22.77 806.14 75.74 2.98 79.6
